3-Layers Head with Reinforced Cloth
One of the water-based hose manufacturing methods.
The cloth is gradually rolled inside the head with a guide, and the inner layer rubber, cloth, and outer layer rubber are merged just before the head outlet and integrally molded.
・The outer layer of the 3-layers head with reinforced cloth (small diameter head) is semi-fixed centering due to the balanceflow design.
Inner layer wall thickness adjustment： Adjusted by moving the nipple back and forth.
The cloth is gradually rolled inside the head with a guide, and the inner layer rubber, cloth, and outer layer rubber are merged just before the head outlet and integrally molded.
・The outer layer of the 3-layers head with reinforced cloth (small diameter head) is semi-fixed centering due to the balanceflow design.
Inner layer wall thickness adjustment： Adjusted by moving the nipple back and forth.
Product Features

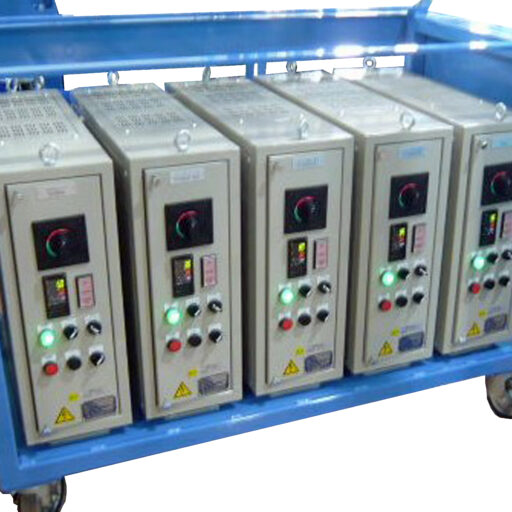

Line equipment
- Inner layer rubber extruder: 90G-16D
- Outer layer rubber extruder: 90G-16D
- 3-layers head with reinforced cloth: Y-shaped arrangement (inner layer rubber + cloth + outer layer rubber)
Applicable hose size： Large diameter head φ26 to φ40 Alignment centering type
Small diameter head φ13 to φ26 for both Alignment and Fix centering
The cloth inlet vacuuming device and cloth supply device will be constructed by the customer.
- Outer diameter measuring instrument
- Water tank
